PTS Series Filter Cartridge with Carbon-based Coating and H13 Grade Filtration for Customizable Microelectronics Applications

PTS Series Filter Cartridge with Carbon-based Coating and H13 Grade Filtration for Customizable Microelectronics Applications
PTS Series Filter Cartridge with Carbon-based Coating and H13 Grade Filtration for Customizable Microelectronics Applications PTS Series Filter Cartridge with Carbon-based Coating and H13 Grade Filtration for Customizable Microelectronics Applications PTS Series Filter Cartridge with Carbon-based Coating and H13 Grade Filtration for Customizable Microelectronics Applications PTS Series Filter Cartridge with Carbon-based Coating and H13 Grade Filtration for Customizable Microelectronics Applications

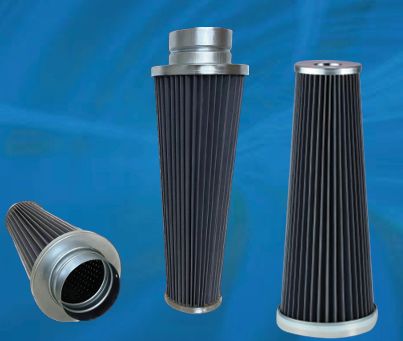

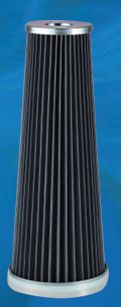

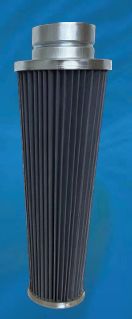

Grote Afbeelding :  PTS Series Filter Cartridge with Carbon-based Coating and H13 Grade Filtration for Customizable Microelectronics Applications

Productdetails:
Plaats van herkomst: Shanghai China
Merknaam: PULLNER
Certificering: ISO 9001/ISO 14001
Modelnummer: PTS-serie
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 st
Prijs: To Be Negotiate
Verpakking Details: Kartonnen doos na polyzak
Levertijd: 7-10 werkdagen
Betalingscondities: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 1000+ STUKS PER WEEK
Contact

PTS Series Filter Cartridge with Carbon-based Coating and H13 Grade Filtration for Customizable Microelectronics Applications

beschrijving
Markeren:

Carbon-based Coating Filter Cartridge

,

H13 Grade PTS Series Filter Cartridge

,

Customizable Length Microelectronics Filter

Powder Transfer Systems Filter Cartridge, PTS Series Filter Cartridge
Product Introduction

The PTS series filter cartridge is engineered for batching powder transfer systems. Constructed from polyester fiber with a specialized coating material, this cartridge ensures effective backflushing while efficiently trapping dust particles. This prevents dust leakage that could compromise vacuum pump and equipment stability. The carbon-based coated material features an active carbon coating on the filter media surface, enhancing filtration efficiency by trapping dust on the cartridge's outer surface. This design improves backflushing performance and extends the filter cartridge's service life.

Applications
  • Vacuum conveying systems
  • Powder transfer systems
  • Decarbonization filtration and fine material filtration
  • Impurity removal filtration in active pharmaceutical ingredient (API) production
Product Specifications
Component Material
Center Core / Outer Core / End cap Carbon steel galvanized / Stainless steel
O-ring Material Silicone
Parameter Specification
Series PTS
Length Customized
Filter Media H13 grade carbon-based polyester coating
Maximum Operating Pressure 0.4Mpa
Maximum Operating Temperature 150℃
Order Information

Order Format: PTS --H13--D1--L--S

Series Precision Length (OD*ID*HIGH) Connection Type O-ring
PTS H13 P1=120*60*300
D1=Customized		 L = Thread connection
D = Customized		 S = Silicone
Product Features
  • Carbon-based coating material with active carbon surface coating enhances filtration efficiency and traps dust particles on the cartridge's outer surface
  • Superior backflushing performance extends filter cartridge service life
  • Excellent particle capture capabilities with up to 99.99% particle interception efficiency
  • Multiple filtration precisions available to meet diverse requirements
  • Customization options based on specific applications and customer needs
Frequently Asked Questions
Q1: Who is the manufacturer and brand of the filter cartridges?
A1: Shanghai Pullner Filtration Technology Co., Ltd.
Q2: Can you provide samples?
A2: We offer 1-2 free samples. Buyers only need to cover the shipping cost.
Q3: What is the delivery time?
A3: Delivery time is typically 5-10 days depending on order quantity. Production capacity: High Flow Filter Cartridge (500 pcs/day), Condensate Filter Element (200 pcs/day), Microporous Pleated Filter Cartridge (200 pcs/day), Membrane Filter Cartridge (100 pcs/day).
Q4: Is the filtration accuracy nominal or absolute?
A4: Our standard products use nominal rating. We can customize absolute-rated filters based on your application requirements.
Q5: Which brands can your filters replace?
A5: Our filters serve as replacements for major brands including PALL, 3M, PARKER, GARVER, and others.
Q6: What is the minimum order quantity (MOQ)?
A6: As a manufacturer, we accept a minimum order quantity of just 1 piece.
